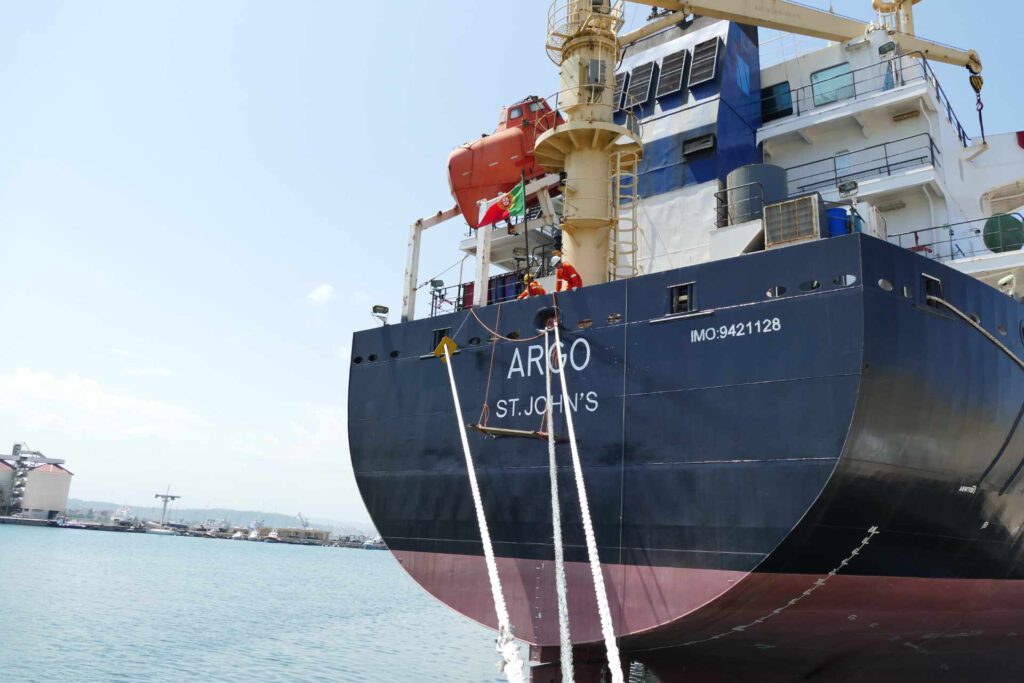

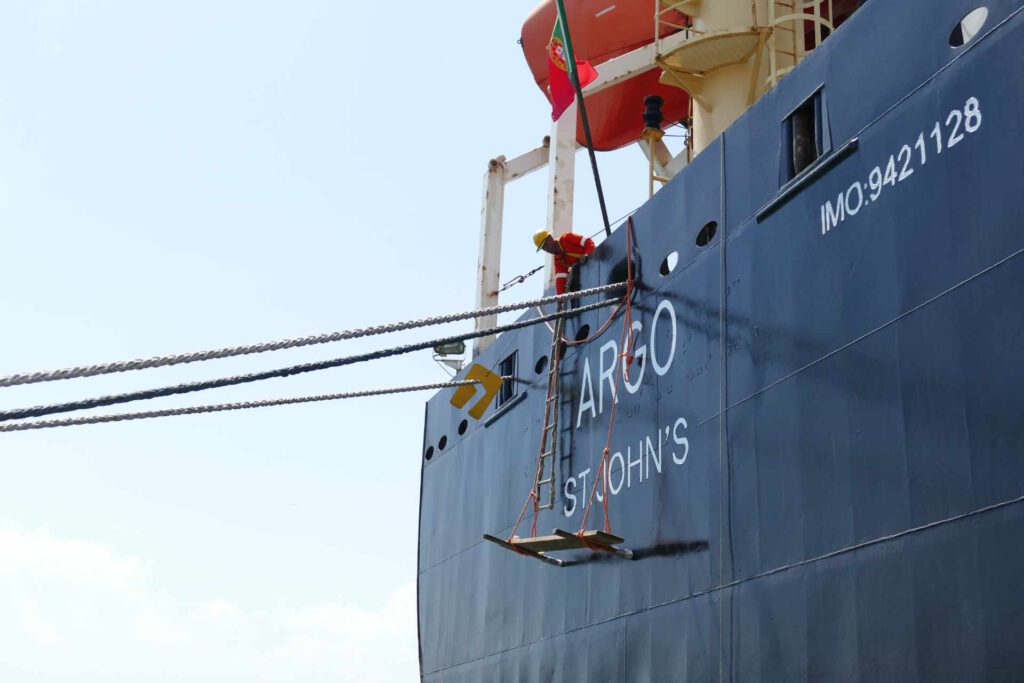

MV ARGO
8,265 mt
Deadweight
108.20m
Length o.a.
18.20m
Beam
2009
Build
Main Specifications
| Type | Multipurpose • Geared • Singledecker |
| Flag | Antigua & Barbuda |
| GRT / NRT | 5,630 / 2,883 |
| Deadweight | 8,265 mt (S) / 7,968 mt (W) |
| Draft | 7.27 m (S) / 7.12 m (W) |

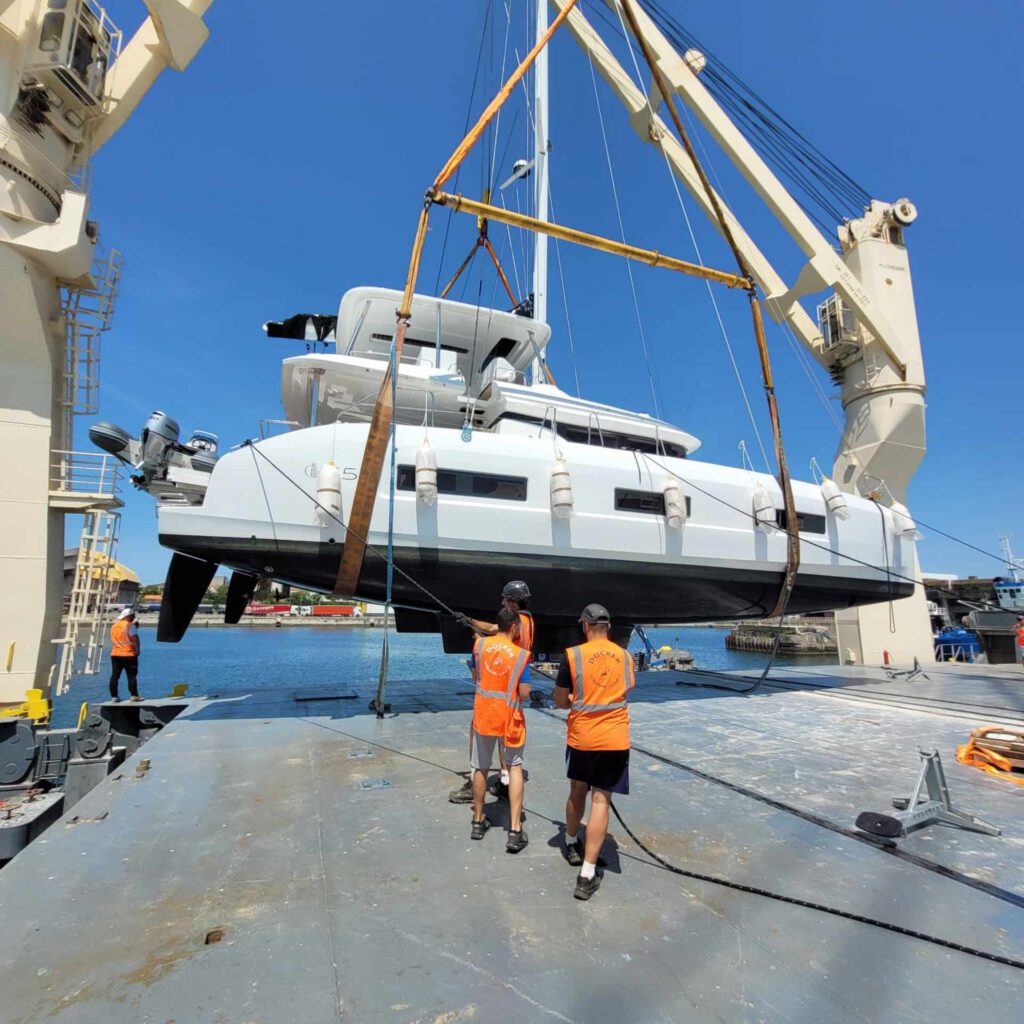

| Cargo gear | 2 hydraulic cranes mounted port side. (SWL 36 mts) |
| Class | Class NK |
| Fittings | – Fitted for the carriage of Grain
– Fitted for the carriage of Solid Bulk Cargoes – Fitted for the carriage of Dangerous Goods – Mechanical Ventilation – Cement Holes – Washing Water Tank – Bow Thruster – Shaft Generator |
Holds, Hatches and Hatch covers
| Hatch Cover Type | Hydraulic Folding Type |
| Hold type | Box Type |
Hatch Dimensions
| LENGTH (m) | BREADTH (m) | |
|---|---|---|
| NO. 1 | 17.50 | 15.20 |
| NO. 2 | 25.90 | 15.20 |
| NO. 3 | 25.20 | 15.20 |

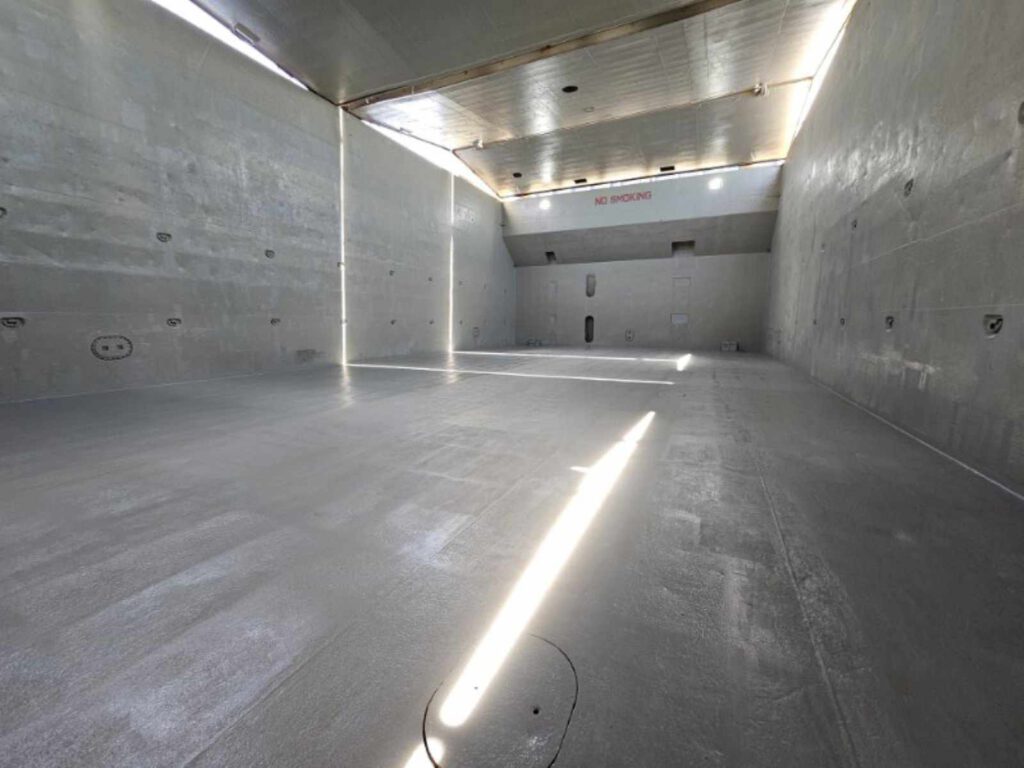

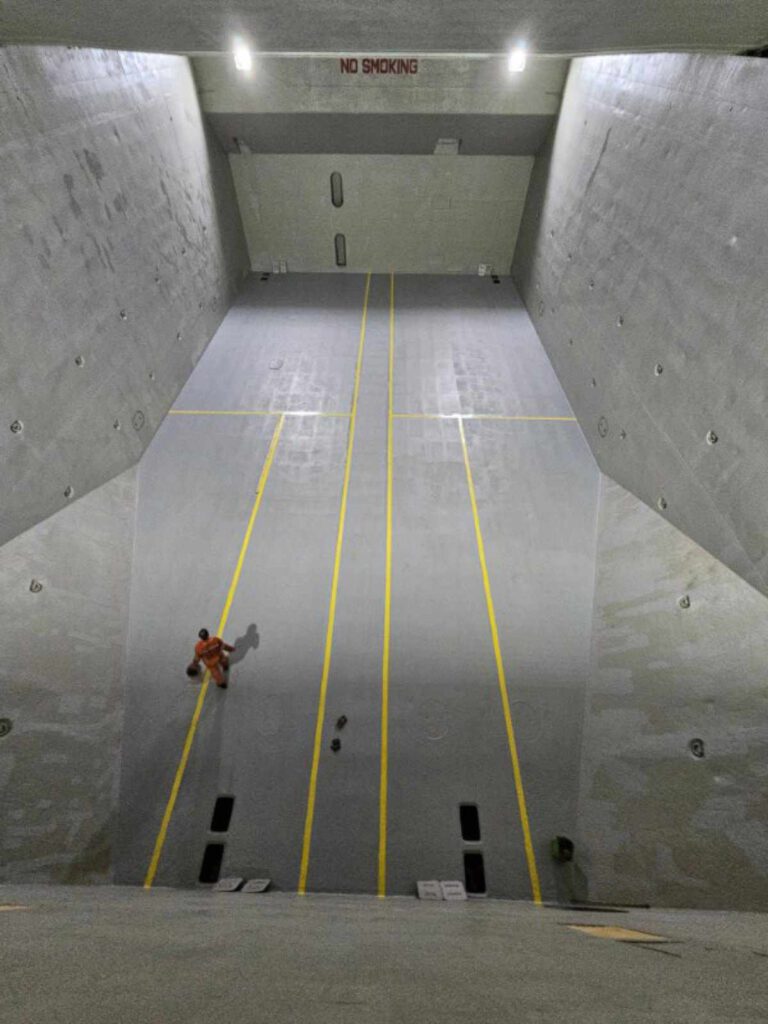

Hold Dimensions
and Capacities
| LENGTH (m) | BREADTH (m) | HEIGHT (m) | GRAIN (cbm) | |
|---|---|---|---|---|
| NO. 1 | 18.90 | 15.20 / 6.00 | 11.20 | 2,772 |
| NO. 2 | 29.40 | 15.20 | 9.25 | 3,903 |
| NO. 3 | 25.20 | 15.20 / 7.70 | 9.25 | 3,616 |
| Total | 10,291 |
ALL DETAILS ABOUT AND GIVEN IN A GOOD FAITH WOG.
